CFLS series ultra-fine magnetic separator is a high-tech product developed by our company and the Institute of Electrical Engineering of the Chinese Academy of Sciences. The product has applied for national utility patents and passed the provincial scientific and technical appraisal in 2005. It was rated as national level by the Ministry of Science and Technology in 2005. Focus on new products. In 2006, it was identified as the National Torch Program.

Scope of application:

　　Removal of weak magnetic oxides from fine or coarse powder materials for purification of materials in non-metallic minerals such as chemical, refractory materials, glass, medicine, ceramics, dry pre-selection of hematite and limonite, dry manganese ore Method of mineral processing.

Technical features:

◆Gathering magnetic composite magnetic system, double magnetic pole structure, high magnetic field strength and large gradient.

◆The magnetic material of the soft magnetic material minimizes the loss of the magnetic field and greatly increases the magnetic force.

◆ with a controllable feeding system.

◆Automatically clean the adsorbed weak magnetic oxide to ensure long-term trouble-free operation.

◆The magnetic induction intensity of the magnetic roller surface can reach 18000Gs.

◆ It can be designed as single layer or multi-layer according to user's requirements, which is convenient for disassembly and assembly.

◆The magnetic roller speed can be adjusted by frequency conversion.

◆ When processing metal ore, the output is 1.5 to 2.5 times the data in the table.

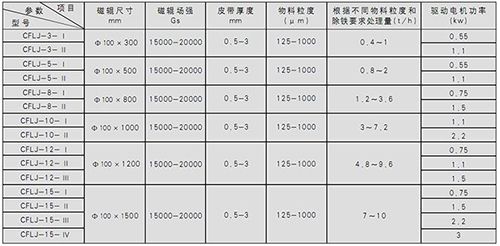

The main technical parameters:
